Wheels & Axles

$4.70

MV Precision Wheels are the standard Scouts NZ specification wheels.  Pinewood cars competing in the National Pinewood Derby are required to use these wheels.

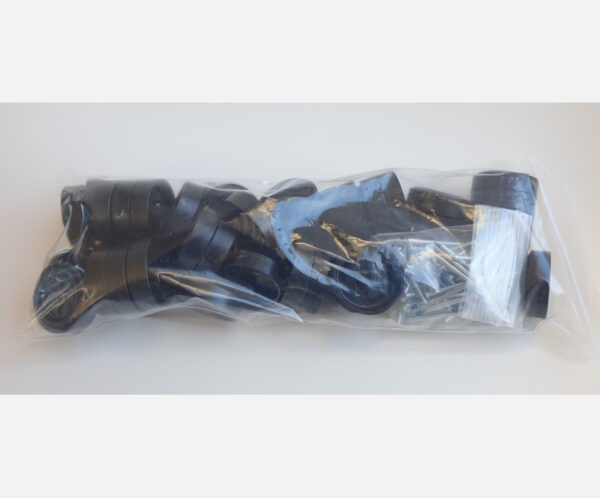

You may select a preference for wheels packaged in individual sets of 4 wheels and axles, or in bulk packs of up to 12 sets.  However if stock is low, we will supply the wheels in whichever packaging we have available.  The price is per set.

SKU: WA Category:
Features
  • Quality Wheels – Forget cheap, out of round wheels. These are precision-moulded wheels that are custom made for Pinewood Derby. You will not be disappointed with the quality of these wheels.
  • Simple Axle Preparation – Don’t worry about filing off flaws. The axles have no burrs or crimp marks, and install without hub caps. You can use them as is, or lightly polish them.
  • Great Price – Since these wheels are required for the National derby, we are selling these at the cost of importing them from the United States so they are accessible for all groups.
Wheel Specifications

Wheel Diameter – 30.3mm
Wheel Tread Width – 0.319 inch
Wheel Bore Diameter – 2.4mm
Wheel Weight – 2.4 grams

Axle Specifications

Shaft Diameter – 2.2mm ± 0.1mm
Shaft Length – 25.4mm
Material – Zinc-coated steel

Weight 0.1 kg
